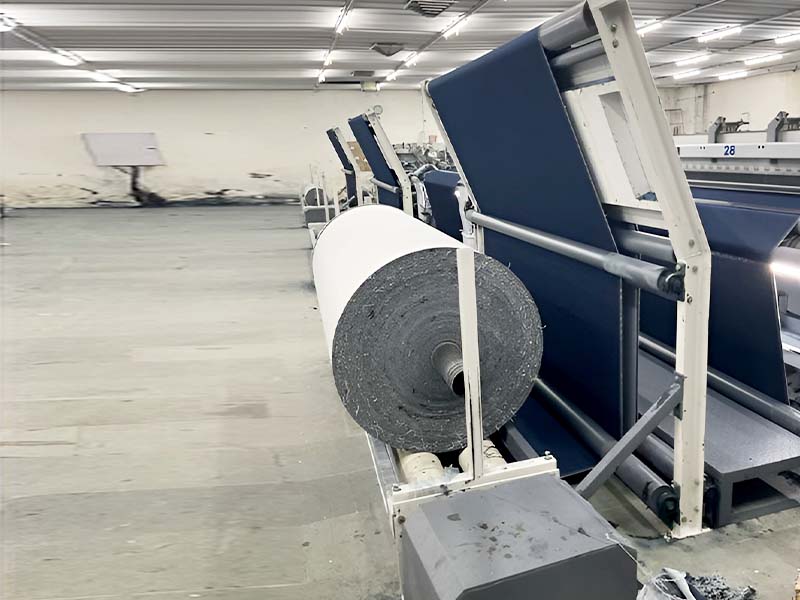

This Machine is used for:

• As Off-Loom Take up.
• Making of Crease-free 2500m+ Fabric Rolls in uniform tension.

Functions:

• Weaver Side Platform for an operator to stand.
• Synchronised Torque Drive to maintain uniform tension from Loom.
• Illuminated Inspection Table (Optional) to check grey cloth before winding.
• Auto & Manual are both options for Winding.
• Heavy Duty Side Frame to prevent running out of the Cloth Roll.

Features:

• Heavy Duty MS Structure can take up to 3000 Kgs weight, all MS Pipes are used in 4 mm thickness.
• Torque-based Drive to control uniform tension in the fabric cloth roll.
• NU-Based durable gearbox for jerkless fabric motion.
• MS Platform in high gauge to reduce bending.
• Low Maintenance with Rigid Chain Wheel Mechanism.
• Powder Coating Structure.
