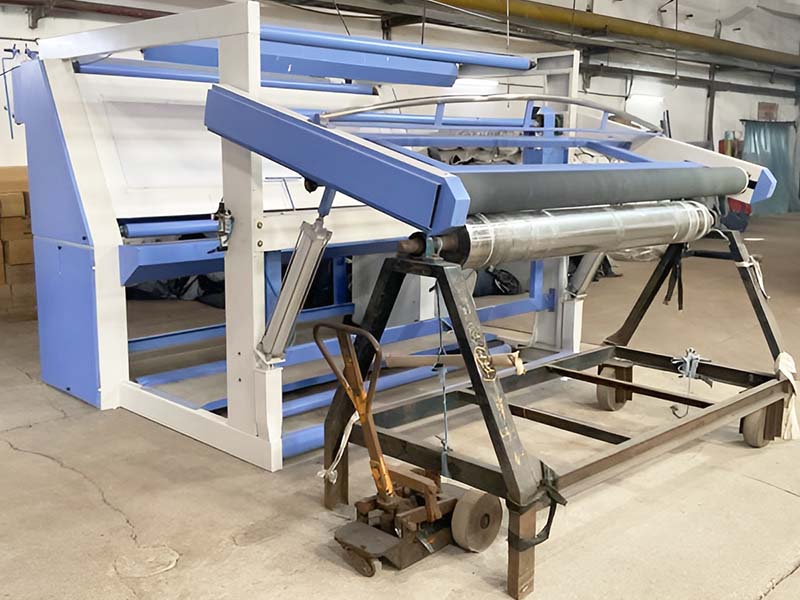

This Machine is used for:

• Inspecting the Fabric Roll in both Top & Bottom illumination.
• Counting the length of Fabric Roll.
• Making Fabric Roll on A-Frame Trolley tight in tension.
• Grading and Flaging of the Roll.

Functions:

• Can take Input Fabric in Cloth Roll.
• Forward Fabric Movement in Roll at A-Frame Trolley & Reverse Fabric Movement in Loose.
• A platform for Operator to Stand.
• SS Bow for Expanding Fabric during tension before Rolling on the Batch.

Features:

• Motors at both Feed and Roll are drive based to control the speed and tension of the fabric.
• Increased Motor Power for a high-speed Range of 0-50 meters/min.
• Acrylic sheets are used instead of Glass for Inspectors’s Protection & Proper Light Dispersion.
• An Ergonomic Shelf is placed for Operator to keep scissors, records and flags.
• Heavy Duplex Chain wheel for Transmission.
• Branded Pneumatic Cylinder with FRL to control Pressure during Rolling as Fabric diameter goes up to 9 feet.

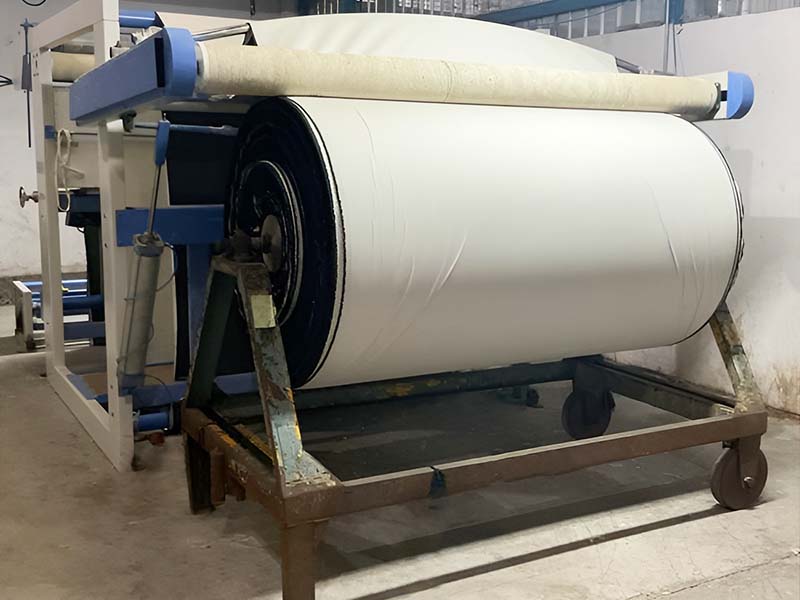

• This Machine can Roll straight up to 3000 m on A Frame Trolley depending on the capacity of A Frame Trolley.
• Powder-coated paint with Matt Finish and longer life.
